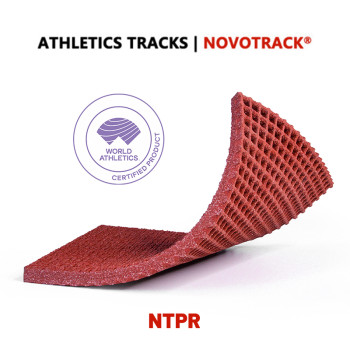

Professional floor surface used in schools with running tracks 400㎡ playground
- group name
- Product Catalog
- Min Order
- 1 piece
- brand name
- NOVOTRACK SPORTS AND FLOORING
- model
- NTPR
- Nearest port for product export
- Port of Tianjin, China
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT
- Acceptable payment methods
- T/T, L/C
- update time
- Wed, 15 Jul 2026 06:47:20 GMT
Paramtents
Color Red, Yellow, Blue, Green, Gray, Purple, etc.
Material Advanced Natural Rubber, EPDM & SBR Composite Formula
Application Athletic stadium tracks, school running tracks, jogging tracks, and pedestrian walkways.
Place of Origin Tianjin, China
Thickness 8mm - 15mm
MOQ 100 Square Meters
Roll Size 1.22m*19m
Brand Name NovoTrack
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

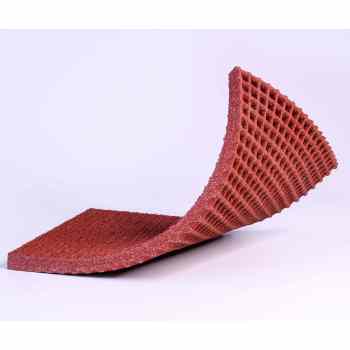

The prefabricated rubber running track surface is globally recognized as a replacement for the traditional PU (polyurethane) rubber running track, completely outlawing the former school "poison running track". The one-time embossing process has created the perfect quality and advantages of wear resistance, non-slip, shock absorption, good elasticity, anti-aging, and durability. In addition, they do not have the problem of rubber particles falling off the surface. These surfaces can be recycled at the end of their useful life. They have also passed the WA. test and are completely environmentally friendly products. We are providing athletes with a better and more comfortable sports environment. The main material we use is natural rubber, and the surface of the rubber running track is divided into two layers. The upper layer is a little harder than the lower layer, and the waffle pattern sticks to the asphalt base to form 8,400 collapsible air cushions per square meter, which further enhances its anti-slip performance, elasticity and shock absorption, and becomes the choice of protecting athletes and school students first products.
|
Test Items
|
National Standard
Parameter Requirements |
Measured Parameters
|
Achieve Standard
|
|
shock absorption/ (%)
|
25～50
|
38.8
|
Qualified
|
|
vertical deformation/ (mm)
|
0.6～2.5
|
1.8
|
Qualified
|
|
Anti-skid value/(BPN, 20℃)
|
≥47 (wet test)
|
49
|
Qualified
|
Tensile Strength/ ( MPa) | ≥0.5 | 0.76 | Qualified |
Elongation at break/(%) | ≥50 | 162.3 | Qualified |
Flame retardant/ (class) | Ⅰ | Ⅰ | Qualified |
1. The foundation should be smooth enough and without sand. Grinding and leveling it. Be sure it does not exceed±3mm when measured by 3m straightedges.
2. Follow the daily construction plan to place the prefabricated rubber running track in the designated location. Draw the baseline according to the provided drawing.
3. Stir the adhesive thoroughly to ensure a consistent mixture before application. Use the prepared adhesive within one hour to maintain its effectiveness.
4. Take the stirred adhesive to the required area and evenly spread it over 2-3 meters using toothed scrapers to ensure consistent and uniform coverage.
5. Place the rubber roll materials in the fixed position, carefully unfold them, and align them precisely to ensure a proper connection with the adhesive.
6. Use a special trowel to forcefully flatten the running track surfaces. Eliminate the air bubbles remaining in the bonding process of the roll and the base.
7. The gap should be securely sealed with nails to ensure stability, prevent movement, and maintain a seamless, durable, and professional finish.
8. After being fixed with nails, press the area with bricks to ensure better connection and enhanced adhesion, allowing the adhesive to set properly.
9. Clear the athletics track of any debris, dirt, and foreign objects to create a clean and safe surface. This ensures proper performance and longevity of the track.
10. After completing the installation, inspect the entire field to ensure all gaps are filled with adhesive and smoothed. Finally, clean the entire field thoroughly and ensure it is kept clean.
11. Mark the lines accurately according to the provided drawings, ensuring correct alignment and measurements for a precise and professional finish.
12. Extend the straight track line, and then mark the lane numbers clearly on the running track for easy identification, visibility, and accurate use.
